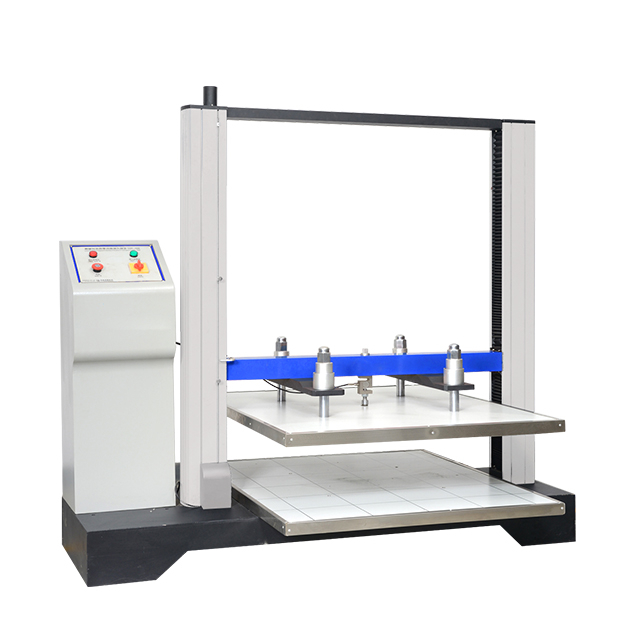

Computer Control Box Compression Testing Machine

This instrument can make compression tests of packages (boxes) or packing and determine their piling up resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).
Availability:
Quantity:
  • HD-A502S

  • HAIDA

Computer Control Box Compression Testing Machine


GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 2200*1600*2400mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 1450kg




STANDARD FEATURES

Item

Description

Max. Force

5000kg

Load cell

1 load cell for highest accuracy

Control system

Windows 7, RS-232 interface

Motor

Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Load cell Resolution

1/250,000

Load Precision

within ±0.25%

Parallelism of Platens

Parallel within Â±2.5mm

Effective test area

1000×1200×1000mm

Test speed

10 ±3mm/min (0.01~200mm/min adjustable)

Software

TM 2101

Data display

Load, displacement, speed, loading rate and elapsed time

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat




APPLICATIONS:

This instrument can make compression tests of packages (boxes) or packing and determine their piling up resistance (for storage and transport).  These tests are called B.C.T. (Box Compression Test).



The Compression Testers can operate in five ways:

1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates

2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates

3. Maximum load: test the maximum load of various corrugated cartons and beehive crates

4. Stacking test: stack test of various corrugated cartons and beehive crates

5. Cyclic test: dynamic strain according to strength & stroke
