HD-A520-3
HAIDA

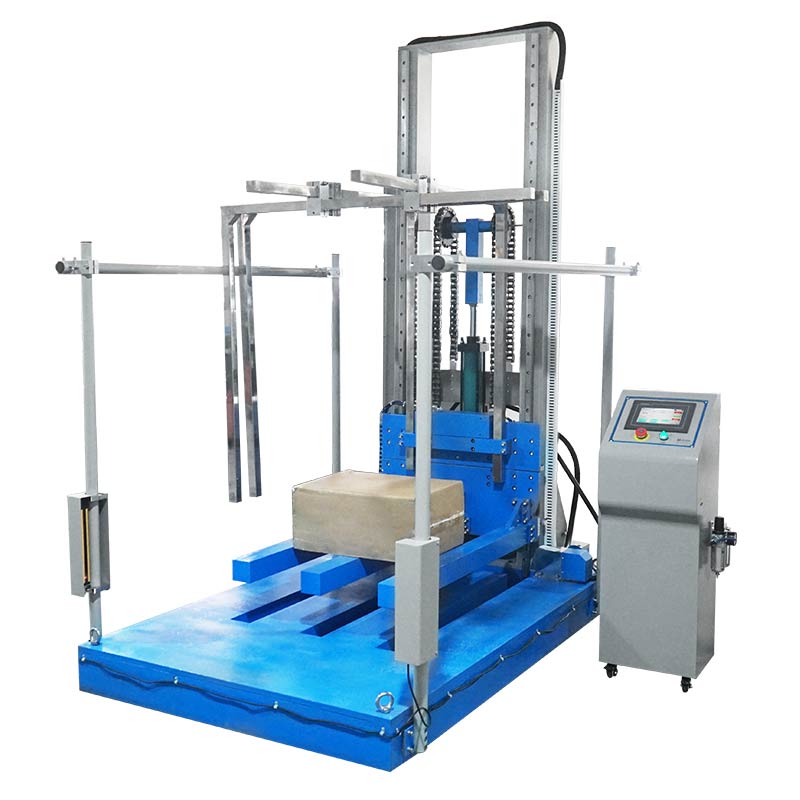

Zero Drop Testing Machine
PRODUCT DESCRIPTION
This test is usually mainly used to simulate the free fall that the product may be subjected to during handling, and to examine the product's ability to withstand unexpected shocks. Usually the drop height is mostly based on the weight of the product and the possible drop probability as a reference standard. The falling surface should be a smooth, hard and rigid surface made of concrete or steel.
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 2.46x1.62x2.15 m
Power supply source: Three-phase, 380V±10%, 50/60Hz (can be appointed)
Gross Weight: 1450kg
STANDARD SPECIFICATIONS
Sample max. load | 500KG |
Test space | 1200*1200*1200mm (can be customer made) |
Drop height | 0-1000mm (Adjustable) |
Drop test | Corners, edges , faces of sample |
Drive mode | Motor drive |
Protection device | Induction type protection device |
Panel material | 45# steel, solid steel plate |
Arm material | 45# steel |
Height display | Digital |
Operate mode | PLC |
Driving mode | Taiwan Linear slider and copper guide |
Drop method | Electromagnetic and pneumatic comprehensive support |
Package | Strong wooden case |
Package Weight | 800KG |
Power | Three- Phase, 380V, 50/60Hz |
| Air source | ≥0.6MPa (User-supplied) |
| Oil source | 40L (User-supplied) |
