HD-R802
HAIDA
The usage

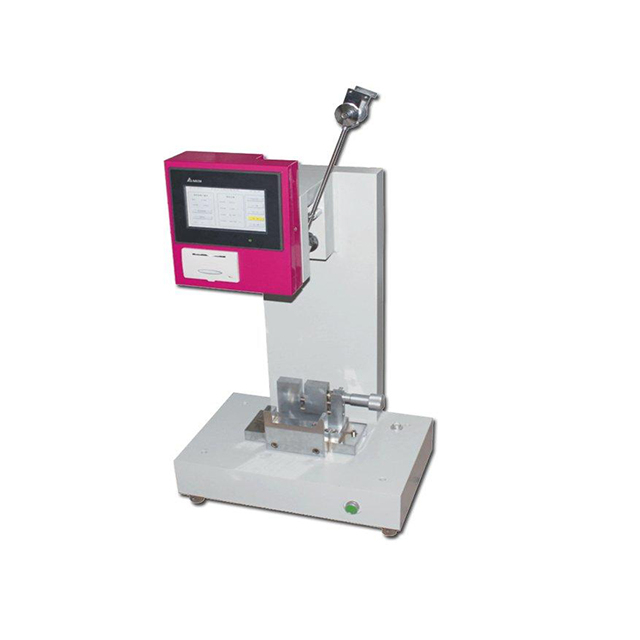

Charpy & Izod Impact Tester used for impact toughness determination of rigid plastics, enhanced nylon, glass fiber reinforced plastics, ceramics, cast stone, insulation material and other non-metal materials.Chary & Izod Impact Tester is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.
Test method:
Test 1: ISO 179- Charpy impact test
Test 2: ISO 180–Izod impact test
Testing Machine Specification:
| Capacity | 7.5, 15, 25, 50J | 1, 2.75, 5.5, 11, 22J |
| Impact velocity | 3.8 m/s | 3.5 m/s |
| Test angle | 160° | 160° |
| Impact blade angle | 30°±l° | 75°±l° |
| Distance between jaw and support line | 40 mm,62mm, 70 mm,95mm | Wedge jaw, general type |
| Blade filleted radius | R=2±0.5mm | R=0.8mm±0.2mm |
| Jaw radius | R=1±0.1mm | R=1±0.1mm |
| Design standard | ISO 179 | ISO 180 |
| Display | LCD Touch Screen | |
| Weight | 120KG | |
| Dimension | 550mm×350mm×850mm | |
| Power | AC220V±10%, 50/60Hz, single phase | |
Details view:
Related standards
About Film/Plastic Film Materials:
ASTM D882: Tensile Test
ASTM F1306: Puncture Test
ASTM D1938: Trouser Tear Test
ASTM D2732: Thermal Shrinkage Test
ASTM D1709, ISO 7765-1: Free-Falling Dart Method
ASTM D1894: Static and Kinetic Coefficients of Friction
ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test
About Plastic& Plastic Pipe Materials:
ISO 180: Izod Impact Test
ISO 9966: Ring Stiffness Test
ISO 179: Charpy Impact Test
ISO 4892: Weathering Aging Test
ASTM D3163: Plastic Lap-Shear Test
ISO 4422, ISO 3127: Pipe Impact Test
ASTM D4565, ISO 11357, EN 728: DSC/OIT
ISO 75: Heat Deflection Temperature (HDT)
ASTM D1598: Hydrostatic Pressure and Burst Test
ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
ISO 306, ASTM D1525: Vicat Softening Temperature (VST)
ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test
About Rubber Materials:
ASTM D412, ISO 37-2005, JIS K6251,DIN 53504-2009: Tensile Strength & Elongation Test
ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
ASTM D624-00, ISO 34-1: Tearing strength Test
ASTM D395-03, ISO 815-1: Compression Set Test
ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test
ISO 2781(Method A): Density Test
ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
ASTM D1646: Mooney Viscometer
