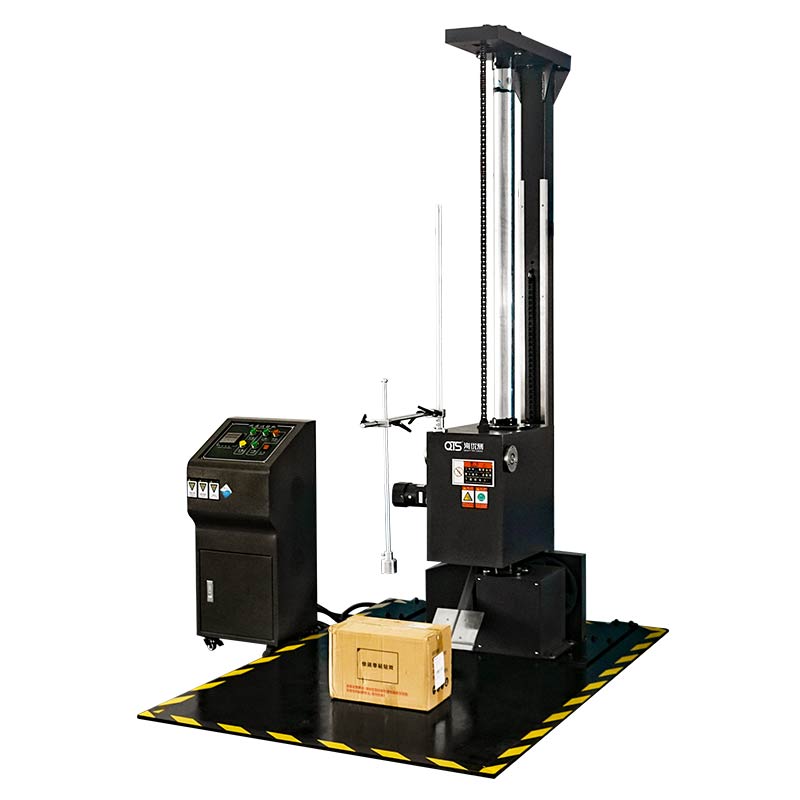

Single Wing Drop Test Machine

Single Wing Drop Test Machine for the product packaging in the simulation of different edge, Angle and surface in different heights drop on the ground

Quantity:
  • HD-A520
  • Haida

Introduction

Single Wing Drop Test Machine for the product packaging in the simulation of different edge, Angle and surface in different heights drop on the ground, to understand the product damage and evaluation of product packaging components can afford to fall when the drop height and the resistance to drop impact strength.And within the scope of products based on the actual situation and the national standard was improved, perfect packaging design.


Box Drop Tester Features

1.  Outside material: advanced paint coat

2.  Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

3.  Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control

4.  Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs


Operation of control chamber


A. It adopts electromagnet control system to control the dropping swing

B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function

C. The testing height can be digital set up.


Configuration


1.Outside material: advanced paint coat

2.Display: LCD display

3.Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+                     dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter                    +encoder + hydraulic pressure buffering device)

4.Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control

5.Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs

   Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece


The comparison table of the package weight and dropping height:

Weight

Height

No less than

Less than

Free-drop

Lbs

Kg

Lbs

Kg

Inch

mm

0

0

21

10

30

760

21

10

41

19

24

610

41

19

61

28

18

460

61

28

100

45

12

310

100

45

150

68

8

200





Item

Description

Drop height

300-1500mm (can be customized)

Display method

Digital display

Max. weight of sample

60kg (can be customized)

Max. size of sample

(L*W*H) 800*800*800mm

Drop panel area

400*600*10mm (material is Solid steel plate)

Control box dimension

(L*W*H) 350*350*1100mm

Deviation of drop horizon

Less than 1°

The table parameters is for the company Standard Model parameters, we support customer customization parameters
