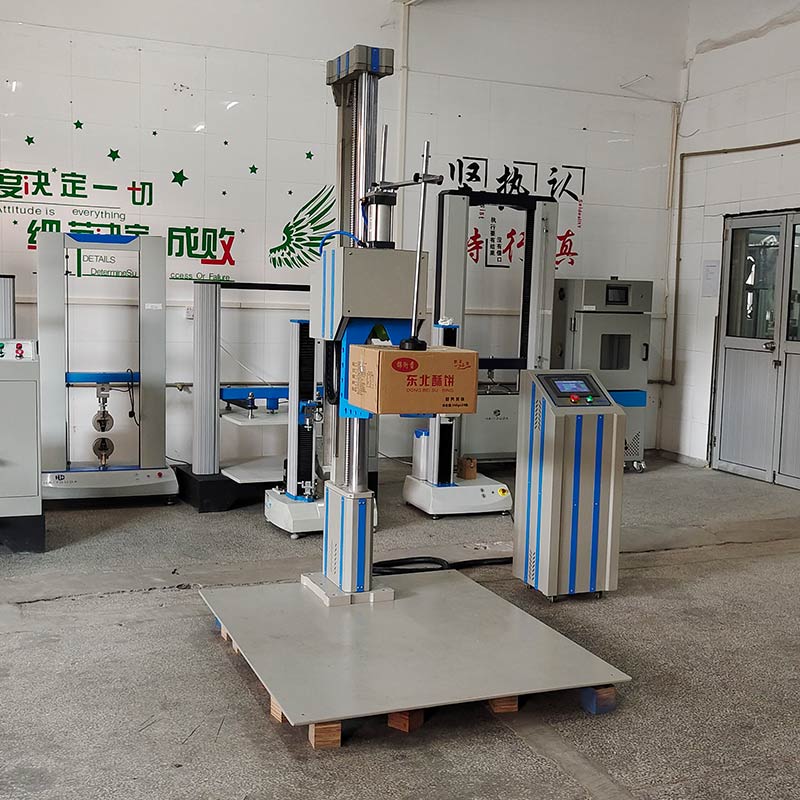

Drop Test Machine

Pneumatic Single-Wing Drop Tester is suitable for testing the damage of product packaging when it is dropped, and assessing the strength of impact resistance during transportation and handling.

This machine can perform free drop test on the surface, corner and edge of the package. It is equipped with a digital height display and an encoder for height tracking, so as to accurately give the data of the product drop height.
Availability:
Quantity:
  • HD-A520-Q

  • HAIDA

Drop Test Machine

APPLICATIONS

Drop Test Machine Mainly used to test the damage of product packaging when dropped.

It can test the surface, corner and edge of the package.the drop height can also be designed according to the type and requirements of the samples. Besides, this machine not only complies with ISTA standards but the following related standards ASTM D5276 ; ISO 2248 ; ISO2876 etc.



FEATURES

1.  Adopt single-arm& double-column structure, with functions of pneumatic reset, pneumatic control drop and electric lifting device;

2.  Equipped with a buffer device to reduce damage to other parts of the instrument due to the impact of the sample holder, thereby increasing the life of the instrument.

3.  Compared with the traditional chain up and down transmission, this machine adopts screw drive, so that the instrument becomes more stable and the test results are more accurate.

4.  Touch screen and PLC control, can set the test height and the number of drops etc.

5.  The stroke limit protection and leakage protection design ensure safe operation.



STANDARD FEATURES

Item

Description

Control method

PLC control

Display method

Touch screen display

Drop height

300-1500mm

Height error

≤1%

Max. weight of sample

0~120kg

Max. size of sample for face

800×800×700mm (L*W*H)

Max. size of sample for Edge

800×800×700mm (L*W*H)

Max. size of sample for Angle

550×550×500mm (L*W*H)

Motor

200W adjustable-speed motor

Dimension

1200×1500×2275mm (L*W*H)

Weight

500 kg

Air source

≥0.6Mpa

Power

1∮ AC220V,250W


Pneumatic Single-wing Drop Tester
