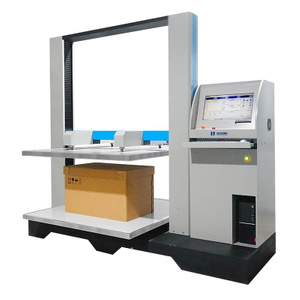

Compression Test Machine

Packaging Compression Test Machine can make compression tests of packages (boxes) or packing and determine their piling up resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).

Quantity:
  • HD-A505-S
  • Haida

Compression Test Machine


Description

Packaging Compression Test Machine can make compression tests of packages (boxes) or packing and determine their piling up resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).


Applications

1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates

2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates

3. Maximum load: test the maximum load of various corrugated cartons and beehive crates

4. Stacking test: stack test of various corrugated cartons and beehive crates

5. Cyclic test: dynamic strain according to strength & stroke


The Features:

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.



Item

Parameters

Test space (LxWxH)

2000X2000X2000mm

Max. Force

5000 kg (50KN)

Load cell

4 load cell for highest accuracy

Control ways

PC control

Control system

Windows 7, RS-232 interface

Motor

Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Load cell Resolution

1/250,000

Load Precision

within ±0.25%

Parallelism of Platens

Parallel within ±2.5mm

Test speed

10 ±3mm/min (0.01~200mm/min adjustable)

Software

TM 2101

Data display

Load, displacement, speed, loading rate and elapsed time

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat

The table parameters is for the company Standard Model parameters, we support customer customization parameters
